Introduction
This page is intended to be a guide for programmers that want to develop with NESFab. It's an extension of the maze tutorial . You can download the code used in this tutorial here.
Playing with single screen MapFab projects
MapFab is a very useful tool paired with YY-CHR, since YY-CHR files and MapFab projects can be imported by NESFab directly.
This example is divided in 2 versions, t2.fab loads a single screen made with YY-CHR and MapFab. Displays it, and moves sprites across the screen. The second version (t2final.fab) adds screen modification to it.
MapFab is a tool that takes YY-CHR NES 8x8 pixel tiles and groups them in a 2x2 metatile that we use to compose the level. Here is the code for the first version t2.fab, which we will disect later:
First version. t2.fab
mapfab(raw, "t2.mapfab", "chr", "palette", "metatiles", "level")
//mapfab(raw, "modproj1.mapfab", "chr", "palette", "metatiles", "level")
ct U BALL_SPRITE=7
ct U NUM_BALLS=4
vars /game_vars
U[NUM_BALLS] balls_pos_x = U[](100, 110, 120, 140)
U[NUM_BALLS] balls_pos_y = U[](150, 110, 115, 140)
S[NUM_BALLS] balls_xinc = S[](1, -1, 1, -1)
S[NUM_BALLS] balls_yinc = S[](1, -1, -1, 1)
CCC/levels lvl1_mtmap_ptr // pointer to level 1 metatiles map
/*
Loads a 16x15 metatiles screen made with MapFab.
Its only argument is a pointer to the levels struct
made with the macros included in the earlier mapfab()
*/
fn load_screen(CCC/levels my_lvl_pointer)
U chr_bank = read U(my_lvl_pointer)
CCC/palettes pal=read CCC/palettes(my_lvl_pointer)
CC/metatiles mymetatiles=read CC/metatiles(my_lvl_pointer)
UU size = UU(read U(my_lvl_pointer)) // width in metatiles of screen
//after all these reads, now my_lvl_pointer points to the metatiles matrix
// set palette
load_palette(pal)
ppu_upload_palette()
UU mt_size = UU(read U(mymetatiles)) // number of metatiles
if mt_size == 0
mt_size = 256
//after this read now mymetatiles points to the
// metatiles struct made with the metatiles.macrofab in the mapfab ()
//pointer to the arrays of the 2x2 tiles (and attr) that make every metatile
CC/metatiles mt_nw
CC/metatiles mt_ne
CC/metatiles mt_sw
CC/metatiles mt_se
CC/metatiles mt_attr
mt_nw=mymetatiles
mt_ne=mt_nw
mt_ne+=mt_size
mt_sw=mt_ne
mt_sw+=mt_size
mt_se=mt_sw
mt_se+=mt_size
mt_attr=mt_se
mt_attr+=mt_size
// now every pointer points where it should
lvl1_mtmap_ptr=my_lvl_pointer // gobal var to the mt map
U i=0
ppu_reset_addr($2000)
// upload namespace data
for U y=0; y<15; y+=1
for U x=0; x<16; x+=1
U my_metatile=my_lvl_pointer{i}
U nw_tile=mt_nw{my_metatile}
U ne_tile=mt_ne{my_metatile}
{PPUDATA}(nw_tile)
{PPUDATA}(ne_tile)
i+=1
i=i-16
for U x=0; x<16; x+=1
U my_metatile=my_lvl_pointer{i}
U sw_tile=mt_sw{my_metatile}
U se_tile=mt_se{my_metatile}
{PPUDATA}(sw_tile)
{PPUDATA}(se_tile)
i+=1
//upload attributes data, we need to OR it together
//for every 2x2 metatiles block (https://www.nesdev.org/wiki/PPU_attribute_tables)
i=0
for U y=0; y<15; y+=2
for U x=0; x<16; x+=2
U my_metatile=my_lvl_pointer{i}
U my_attr=mt_attr{my_metatile}
//
my_metatile=my_lvl_pointer{i+1}
my_attr|=(mt_attr{my_metatile}<<2)
//
my_metatile=my_lvl_pointer{i+16}
my_attr|=(mt_attr{my_metatile}<<4)
//
my_metatile=my_lvl_pointer{i+17}
my_attr|=(mt_attr{my_metatile}<<6)
i+=2
{PPUDATA}(my_attr)
i+=16
nmi main_nmi()
// Update OAM and poll the pads:
ppu_upload_oam_poll_pads(0)
// Turn on rendering:
{PPUMASK}(PPUMASK_ON | PPUMASK_NO_CLIP)
// Reset the scroll
ppu_reset_scroll(0, 0)
mode main()
: nmi main_nmi
load_screen(@lev_level1) // the name lev_level1 is defined in the levels.macrofab
// Tell the NES to trigger NMI once per frame:
{PPUCTRL}(PPUCTRL_NMI_ON)
// Wait forever, one frame at a time:
while true
update_pads()
//move_player()
update_sprites()
nmi // Wait for the next NMI
fn update_sprites()
// Our stack index into OAM:
U i = 0
// update balls position
for U n=0; n<NUM_BALLS; n+=1
balls_pos_x[n]+=balls_xinc[n]
balls_pos_y[n]+=balls_yinc[n]
// check collisions
for U n=0; n<NUM_BALLS; n+=1
if get_metatile_at_pix((balls_pos_x[n]+4), balls_pos_y[n]) > 0
balls_yinc[n]=1
if get_metatile_at_pix((balls_pos_x[n]+4), (balls_pos_y[n]+8)) > 0
balls_yinc[n]=-1
if get_metatile_at_pix(balls_pos_x[n], (balls_pos_y[n]+4)) > 0
balls_xinc[n]=1
if get_metatile_at_pix((balls_pos_x[n]+8), (balls_pos_y[n]+4)) > 0
balls_xinc[n]=-1
// Push sprites
for U n=0; n<NUM_BALLS; n+=1
set_oam_x(i, balls_pos_x[n]) // x-position
set_oam_y(i, balls_pos_y[n]) // y-position
set_oam_p(i, BALL_SPRITE) // tile
set_oam_a(i, 0) // options
i += 4
// Clear the remainder of OAM
hide_oam(i)
/*
returns the map metatile at screen pixel position (px, py)
*/
fn get_metatile_at_pix (U px, U py) U
UU lvlmtm=(((py>>4)<<4)+(px>>4))
U t=lvl1_mtmap_ptr{lvlmtm}
return t
The first line mapfab(raw, "t2.mapfab", "chr", "palette", "metatiles", "level") is very important. It loads the MapFab project and runs some macros on the file that define a series of variables. Here are two of the macros that define variables we will use later. Take a look:
The first one is defined in metatiles.macrofab, and defines the metatiles made of 2x2 YY-CHR tiles as an array.
#:name:#
#:chr_name:#
#:palette_name:#
omni data /metatiles
[] mt_#name#
U(_num) // The amount of metatiles.
(_nw) // North-west tiles of each metatile
(_ne) // North-east tiles of each metatile
(_sw) // South-west tiles of each metatile
(_se) // South-east tiles of each metatile
(_combined) // The collisions and attributes, OR'd together.
The second is defined in levels.macrofab, and defines an array that contains the map of metatiles that define the level.
#:name:#
#:chr_name:#
#:palette_name:#
#:metatiles_name:#
data /levels
[] lev_#name#
U(chr_#chr_name#_index) // The CHR banke
(@pal_#palette_name#) // Pointer to the palette
(@mt_#metatiles_name#) // Pointer to the metatiles
U(_width) // The width, in tiles.
(_row_major) // The actual level tiles
The second place we should look at is the load_screen function:
/*
Loads a 16x15 metatiles screen made with MapFab.
Its only argument is a pointer to the levels struct
made with the macros included in the earlier mapfab()
*/
fn load_screen(CCC/levels my_lvl_pointer)
U chr_bank = read U(my_lvl_pointer)
CCC/palettes pal=read CCC/palettes(my_lvl_pointer)
CC/metatiles mymetatiles=read CC/metatiles(my_lvl_pointer)
UU size = UU(read U(my_lvl_pointer)) // width in metatiles of screen
//after all these reads, now my_lvl_pointer points to the metatiles matrix
// set palette
load_palette(pal)
ppu_upload_palette()
UU mt_size = UU(read U(mymetatiles)) // number of metatiles
if mt_size == 0
mt_size = 256
//after this read now mymetatiles points to the
// metatiles struct made with the metatiles.macrofab in the mapfab ()
//pointer to the arrays of the 2x2 tiles (and attr) that make every metatile
CC/metatiles mt_nw
CC/metatiles mt_ne
CC/metatiles mt_sw
CC/metatiles mt_se
CC/metatiles mt_attr
mt_nw=mymetatiles
mt_ne=mt_nw
mt_ne+=mt_size
mt_sw=mt_ne
mt_sw+=mt_size
mt_se=mt_sw
mt_se+=mt_size
mt_attr=mt_se
mt_attr+=mt_size
// now every pointer points where it should
lvl1_mtmap_ptr=my_lvl_pointer // gobal var to the mt map
U i=0
ppu_reset_addr($2000)
// upload namespace data
for U y=0; y<15; y+=1
for U x=0; x<16; x+=1
U my_metatile=my_lvl_pointer{i}
U nw_tile=mt_nw{my_metatile}
U ne_tile=mt_ne{my_metatile}
{PPUDATA}(nw_tile)
{PPUDATA}(ne_tile)
i+=1
i=i-16
for U x=0; x<16; x+=1
U my_metatile=my_lvl_pointer{i}
U sw_tile=mt_sw{my_metatile}
U se_tile=mt_se{my_metatile}
{PPUDATA}(sw_tile)
{PPUDATA}(se_tile)
i+=1
//upload attributes data, we need to OR it together
//for every 2x2 metatiles block (https://www.nesdev.org/wiki/PPU_attribute_tables)
i=0
for U y=0; y<15; y+=2
for U x=0; x<16; x+=2
U my_metatile=my_lvl_pointer{i}
U my_attr=mt_attr{my_metatile}
//
my_metatile=my_lvl_pointer{i+1}
my_attr|=(mt_attr{my_metatile}<<2)
//
my_metatile=my_lvl_pointer{i+16}
my_attr|=(mt_attr{my_metatile}<<4)
//
my_metatile=my_lvl_pointer{i+17}
my_attr|=(mt_attr{my_metatile}<<6)
i+=2
{PPUDATA}(my_attr)
i+=16
It perfoms a series of reads, which read the value where the pointer is pointing and advances the pointer. This is necessary to read the values of the variables created in the .macrofab files and get pointers to all the variables we need, like the palette, the 2x2 tiles metatiles definition, and the array of metatiles that make the screen.
Once it gets pointers to all the level definition variables, writes the data to the NES GFX memory, palette, namespace (map) and attributes data.
Here is the rest of the code:
nmi main_nmi()
// Update OAM and poll the pads:
ppu_upload_oam_poll_pads(0)
// Turn on rendering:
{PPUMASK}(PPUMASK_ON | PPUMASK_NO_CLIP)
// Reset the scroll
ppu_reset_scroll(0, 0)
mode main()
: nmi main_nmi
load_screen(@lev_level1) // the name lev_level1 is defined in the levels.macrofab
// Tell the NES to trigger NMI once per frame:
{PPUCTRL}(PPUCTRL_NMI_ON)
// Wait forever, one frame at a time:
while true
update_pads()
//move_player()
update_sprites()
nmi // Wait for the next NMI
fn update_sprites()
// Our stack index into OAM:
U i = 0
// update balls position
for U n=0; n<NUM_BALLS; n+=1
balls_pos_x[n]+=balls_xinc[n]
balls_pos_y[n]+=balls_yinc[n]
// check collisions
for U n=0; n<NUM_BALLS; n+=1
if get_metatile_at_pix((balls_pos_x[n]+4), balls_pos_y[n]) > 0
balls_yinc[n]=1
if get_metatile_at_pix((balls_pos_x[n]+4), (balls_pos_y[n]+8)) > 0
balls_yinc[n]=-1
if get_metatile_at_pix(balls_pos_x[n], (balls_pos_y[n]+4)) > 0
balls_xinc[n]=1
if get_metatile_at_pix((balls_pos_x[n]+8), (balls_pos_y[n]+4)) > 0
balls_xinc[n]=-1
// Push sprites
for U n=0; n<NUM_BALLS; n+=1
set_oam_x(i, balls_pos_x[n]) // x-position
set_oam_y(i, balls_pos_y[n]) // y-position
set_oam_p(i, BALL_SPRITE) // tile
set_oam_a(i, 0) // options
i += 4
// Clear the remainder of OAM
hide_oam(i)
/*
returns the map metatile at screen pixel position (px, py)
*/
fn get_metatile_at_pix (U px, U py) U
UU lvlmtm=(((py>>4)<<4)+(px>>4))
U t=lvl1_mtmap_ptr{lvlmtm}
return t
The rest of the code is pretty easy to read. It defines the NMI function to read the pads and upload the sprites data.
Then the main function (mode) that loads the screen with the load_screen function. The update_sprites function moves the sprite balls around the screen and the final function, get_metatile_at_pix returns the metatile at a specific pixel to check for collisions of the balls with the walls.

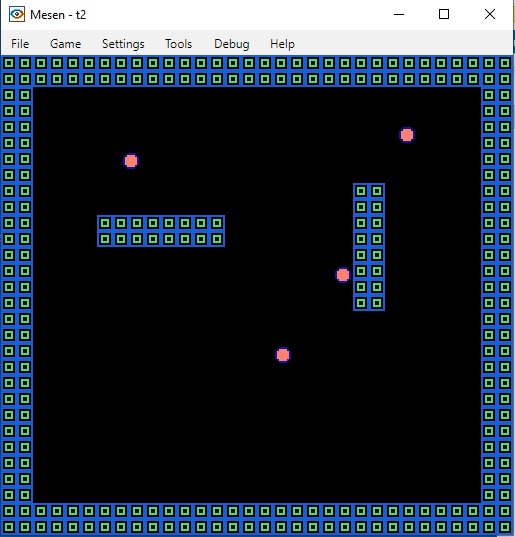

Here is what the screen looks like:

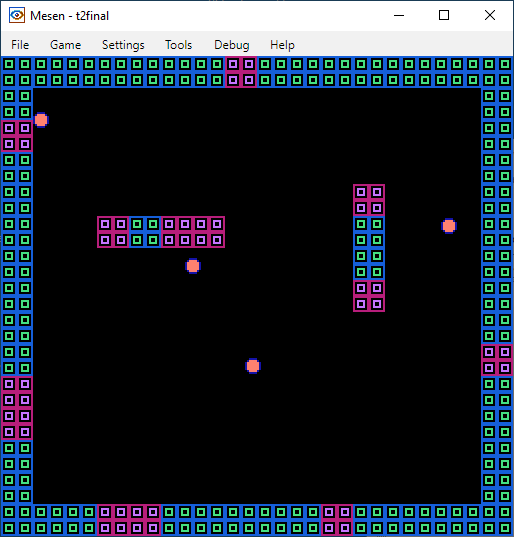

Second version. t2final.fab
Here is the code for the final version. This time we check for collisions with the walls and change the namespace (screen map) with every collision.
mapfab(raw, "t2.mapfab", "chr", "palette", "metatiles", "level")
//mapfab(raw, "modproj1.mapfab", "chr", "palette", "metatiles", "level")
ct U BALL_SPRITE=7
ct U NUM_BALLS=4
ct U TOUCHED_WALL_MT=8 // metatile for touched wall
vars /game_vars
U[NUM_BALLS] balls_pos_x = U[](100, 110, 120, 140)
U[NUM_BALLS] balls_pos_y = U[](150, 110, 115, 140)
S[NUM_BALLS] balls_xinc = S[](1, -1, 1, -1)
S[NUM_BALLS] balls_yinc = S[](1, -1, -1, 1)
U[16*15] lvl1_mt_map // level 1 map of metatiles in RAM
//pointer to the arrays of the 2x2 tiles (and attr) that make every metatile
CC/metatiles mt_nw
CC/metatiles mt_ne
CC/metatiles mt_sw
CC/metatiles mt_se
CC/metatiles mt_attr
// we temporary need to store the collision
// to update the map/GFX mem during VBLANK
Bool is_collision_pending=false
U collision_col
U collision_row
/*
Loads a 16x15 metatiles screen made with MapFab.
Its only argument is a pointer to the levels struct
made with the macros included in the earlier mapfab()
*/
fn load_screen(CCC/levels my_lvl_pointer)
U chr_bank = read U(my_lvl_pointer)
CCC/palettes pal=read CCC/palettes(my_lvl_pointer)
CC/metatiles mymetatiles=read CC/metatiles(my_lvl_pointer)
UU size = UU(read U(my_lvl_pointer)) // width in metatiles of screen
//after all these reads, now my_lvl_pointer points to the metatiles matrix
// set palette
load_palette(pal)
ppu_upload_palette()
UU mt_size = UU(read U(mymetatiles)) // number of metatiles
if mt_size == 0
mt_size = 256
//after this read now mymetatiles points to the
// metatiles struct made with the metatiles.macrofab in the mapfab ()
mt_nw=mymetatiles
mt_ne=mt_nw
mt_ne+=mt_size
mt_sw=mt_ne
mt_sw+=mt_size
mt_se=mt_sw
mt_se+=mt_size
mt_attr=mt_se
mt_attr+=mt_size
// now every pointer points where it should
U i=0
ppu_reset_addr($2000)
// upload namespace data
for U y=0; y<15; y+=1
for U x=0; x<16; x+=1
U my_metatile=my_lvl_pointer{i}
U nw_tile=mt_nw{my_metatile}
U ne_tile=mt_ne{my_metatile}
{PPUDATA}(nw_tile)
{PPUDATA}(ne_tile)
i+=1
i=i-16
for U x=0; x<16; x+=1
U my_metatile=my_lvl_pointer{i}
U sw_tile=mt_sw{my_metatile}
U se_tile=mt_se{my_metatile}
{PPUDATA}(sw_tile)
{PPUDATA}(se_tile)
i+=1
//upload attributes data, we need to OR it together
//for every 2x2 metatiles block (https://www.nesdev.org/wiki/PPU_attribute_tables)
i=0
for U y=0; y<15; y+=2
for U x=0; x<16; x+=2
U my_metatile=my_lvl_pointer{i}
U my_attr=mt_attr{my_metatile}
//
my_metatile=my_lvl_pointer{i+1}
my_attr|=(mt_attr{my_metatile}<<2)
//
my_metatile=my_lvl_pointer{i+16}
my_attr|=(mt_attr{my_metatile}<<4)
//
my_metatile=my_lvl_pointer{i+17}
my_attr|=(mt_attr{my_metatile}<<6)
i+=2
{PPUDATA}(my_attr)
i+=16
// copy the level metatiles map to RAM
for U iv=0; iv<(16*15); iv+=1
lvl1_mt_map{iv}=my_lvl_pointer{iv}
nmi main_nmi()
// we need to update GFXs while NMI, so we do this now
if is_collision_pending
set_metatile_at_colrow(collision_col, collision_row, TOUCHED_WALL_MT)
is_collision_pending=false
// Update OAM and poll the pads:
ppu_upload_oam_poll_pads(0)
// Turn on rendering:
{PPUMASK}(PPUMASK_ON | PPUMASK_NO_CLIP)
// Reset the scroll
ppu_reset_scroll(0, 0)
mode main()
: nmi main_nmi
load_screen(@lev_level1) // the name lev_level1 is defined in the levels.macrofab
// Tell the NES to trigger NMI once per frame:
{PPUCTRL}(PPUCTRL_NMI_ON)
// Wait forever, one frame at a time:
while true
update_pads()
//move_player()
update_sprites()
nmi // Wait for the next NMI
fn update_sprites()
// Our stack index into OAM:
U i = 0
// update balls position
for U n=0; n 0
balls_yinc[n]=1
is_collision_pending=true
collision_col=((balls_pos_x[n]+4)>>4)
collision_row=(balls_pos_y[n]>>4)
if get_metatile_at_pix((balls_pos_x[n]+4), (balls_pos_y[n]+8)) > 0
balls_yinc[n]=-1
is_collision_pending=true
collision_col=((balls_pos_x[n]+4)>>4)
collision_row=((balls_pos_y[n]+8)>>4)
if get_metatile_at_pix(balls_pos_x[n], (balls_pos_y[n]+4)) > 0
balls_xinc[n]=1
is_collision_pending=true
collision_col=(balls_pos_x[n]>>4)
collision_row=((balls_pos_y[n]+4)>>4)
if get_metatile_at_pix((balls_pos_x[n]+8), (balls_pos_y[n]+4)) > 0
balls_xinc[n]=-1
is_collision_pending=true
collision_col=((balls_pos_x[n]+8)>>4)
collision_row=((balls_pos_y[n]+4)>>4)
// Push sprites
for U n=0; nn<NUM_BALLS; n+=1
set_oam_x(i, balls_pos_x[n]) // x-position
set_oam_y(i, balls_pos_y[n]) // y-position
set_oam_p(i, BALL_SPRITE) // tile
set_oam_a(i, 0) // options
i += 4
// Clear the remainder of OAM
hide_oam(i)
/*
returns the map metatile at screen pixel position (px, py)
*/
fn get_metatile_at_pix (U px, U py) U
UU lvlmtm=(((py>>4)<<4)+(px>>4))
U t=lvl1_mt_map{lvlmtm}
return t
/*
Sets the row,col metatile to a new value.
This is done in the collisions_map variable because
it's likely lvl1_mtmap_ptr points to ROM
Notice that x,y are UU values, if defined as U,
the math here for bit shifting wouldn't work
*/
fn set_metatile_at_colrow (UU x, UU y, U new_mt)
// write to the ram metatiles map
UU map_displacement=((y<<4)+x)
lvl1_mt_map{map_displacement}=new_mt
// change that metatile position in GFX RAM
// first the tiles
UU gfx_addr=((y<<6)+(x<<1))
gfx_addr+=$2000
ppu_reset_addr(gfx_addr)
{PPUDATA}( mt_nw{new_mt} )
{PPUDATA}( mt_ne{new_mt} )
gfx_addr+=32
ppu_reset_addr(gfx_addr)
{PPUDATA}( mt_sw{new_mt} )
{PPUDATA}( mt_se{new_mt} )
//calculate the new 2x2 metatiles block attributes byte
UU mt_m_disp=(((y & %11111110) <<4)+(x & %11111110))
U mt_2x2_pos=U(((y&1)<<1)|(x & 1))
//
U my_metatile=lvl1_mt_map{mt_m_disp}
U new_attr=mt_attr{my_metatile}
//
my_metatile=lvl1_mt_map{mt_m_disp+1}
new_attr|=(mt_attr{my_metatile}<<2)
//
my_metatile=lvl1_mt_map{mt_m_disp+16}
new_attr|=(mt_attr{my_metatile}<<4)
//
my_metatile=lvl1_mt_map{mt_m_disp+17}
new_attr|=(mt_attr{my_metatile}<<6)
//
//now access the attributes(palettes) address
UU attr_addr_disp=(((y>>1)<<3)+(x>>1))
ppu_reset_addr($2000+960+attr_addr_disp)
{PPUDATA}(new_attr)
Notice how, this time, in the load_screen function, we copy the map of metatiles to an array in RAM:
// copy the level metatiles map to RAM
for U iv=0; iv<(16*15); iv+=1
lvl1_mt_map{iv}=my_lvl_pointer{iv}
This is done because, probably, the array of metatiles we passed to load_screen is probably in ROM, and we want to modify that array with every ball collision.
Now, at every collision of a ball with a wall, we mark the affected metatile with the variables is_collision_pending, collision_col and collision_row.
// check collisions
for U n=0; nn<NUM_BALLS; n+=1
if get_metatile_at_pix((balls_pos_x[n]+4), balls_pos_y[n]) > 0
balls_yinc[n]=1
is_collision_pending=true
collision_col=((balls_pos_x[n]+4)>>4)
collision_row=(balls_pos_y[n]>>4)
It's made that way because, during NMI, we must change the tiles in the NES GFX memory, as well as in the lvl1_mt_map variable, that contains the map of metatiles in RAM.
nmi main_nmi()
// we need to update GFXs while NMI, so we do this now
if is_collision_pending
set_metatile_at_colrow(collision_col, collision_row, TOUCHED_WALL_MT)
is_collision_pending=false
That change is made in the set_metatile_at_colrow function, which updates the lvl1_mt_map variable and the NES gfx memory:
/*
Sets the row,col metatile to a new value.
This is done in the collisions_map variable because
it's likely lvl1_mtmap_ptr points to ROM
Notice that x,y are UU values, if defined as U,
the math here for bit shifting wouldn't work
*/
fn set_metatile_at_colrow (UU x, UU y, U new_mt)
// write to the ram metatiles map
UU map_displacement=((y<<4)+x)
lvl1_mt_map{map_displacement}=new_mt
// change that metatile position in GFX RAM
// first the tiles
UU gfx_addr=((y<<6)+(x<<1))
gfx_addr+=$2000
ppu_reset_addr(gfx_addr)
{PPUDATA}( mt_nw{new_mt} )
{PPUDATA}( mt_ne{new_mt} )
gfx_addr+=32
ppu_reset_addr(gfx_addr)
{PPUDATA}( mt_sw{new_mt} )
{PPUDATA}( mt_se{new_mt} )
//calculate the new 2x2 metatiles block attributes byte
UU mt_m_disp=(((y & %11111110) <<4)+(x & %11111110))
U mt_2x2_pos=U(((y&1)<<1)|(x & 1))
//
U my_metatile=lvl1_mt_map{mt_m_disp}
U new_attr=mt_attr{my_metatile}
//
my_metatile=lvl1_mt_map{mt_m_disp+1}
new_attr|=(mt_attr{my_metatile}<<2)
//
my_metatile=lvl1_mt_map{mt_m_disp+16}
new_attr|=(mt_attr{my_metatile}<<4)
//
my_metatile=lvl1_mt_map{mt_m_disp+17}
new_attr|=(mt_attr{my_metatile}<<6)
//
//now access the attributes(palettes) address
UU attr_addr_disp=(((y>>1)<<3)+(x>>1))
ppu_reset_addr($2000+960+attr_addr_disp)
{PPUDATA}(new_attr)
Notice that, we were able to copy the metatiles (16H*15V) to RAM because the screen is small. Since we only have 2KB of RAM, if we were to work with a map several screens wide, we would need to use another approach.
